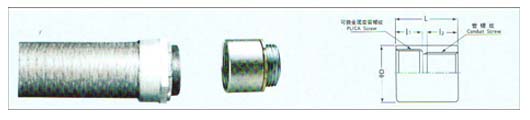

| 接线箱连接器 |
| |
|
|
|
| 接线箱连接器规格表
| 型号 |
可挠金属套管规格 |
I1
mm |
I2
mm |
I3
mm |
I
mm |
ΦD
mm |
Φd
mm |
ΦS
mm |
管螺纹 |
| BG-12 |
LC |
12# |
12 |
15 |
16.5 |
28.5 |
24.0 |
20.9 |
20.9 |
G1/2" |
| BG-15 |
15# |
12 |
15 |
16.5 |
28.5 |
24.0 |
20.9 |
20.9 |
G1/2" |
| BG-17 |
17# |
12 |
18 |
21.4 |
33.4 |
28.3 |
20.9 |
20.9 |
G1/2" |
| BG-24 |
24# |
12 |
20 |
23.4 |
35.4 |
35.5 |
26.4 |
26.4 |
G3/4" |
| BG-30 |
30# |
16 |
22 |
25.4 |
41.4 |
41.6 |
33.2 |
33.2 |
G1" |
| BG-38 |
38# |
16 |
25 |
28.9 |
44.9 |
50.5 |
41.9 |
41.9 |
G1 1/4" |
| BG-50 |
50# |
18 |
25 |
28.9 |
46.9 |
62.5 |
47.8 |
47.8 |
G1 1/2" |
| BG-63 |
63# |
18 |
35 |
39.0 |
57.0 |
76.6 |
59.6 |
59.6 |
G2" |
| BG-76 |
76# |
18 |
35 |
39.0 |
57.0 |
90.4 |
75.1 |
75.1 |
G2 1/2" |
| BG-83 |
83# |
20 |
35 |
39.0 |
59.0 |
95.6 |
87.8 |
87.8 |
G3" |
| BG-101 |
101# |
20 |
40 |
44.5 |
66.5 |
116.6 |
113 |
113 |
G4" |
|
|
|
：
