| 防水型90°弯角混合连接器 |
| |
| |

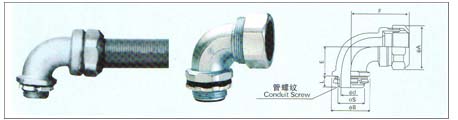

详细图解 ①：F ②：E ③：L ④：ΦA ⑤：Φd ⑥：ΦS ⑦：ΦB |
|
| 防水型90°弯角混合连接器规格表
| 型号 |
可挠金属套管规格 |
L
mm |
E
mm |
F约
mm |
ΦA
mm |
ΦB
mm |
Φd
mm |
ΦS
mm |
管螺纹 |
| W90AG-15 |
|
15# |
12 |
18 |
39 |
37 |
36 |
14 |
20.9 |
G1/2" |
| W90AG-17 |
17# |
12 |
18 |
39 |
37 |
36 |
14 |
20.9 |
G1/2" |
| W90AG-24 |
24# |
12 |
26 |
50 |
47 |
38 |
20 |
26.1 |
G3/4" |
| W90AG-30 |
30# |
16 |
28 |
55 |
53 |
44 |
20 |
32.9 |
G1 |
| W90AG-38 |
38# |
16 |
34 |
63 |
63 |
56 |
33 |
41.6 |
G1 1/4" |
| W90AG-50 |
50# |
18 |
38 |
68 |
78 |
62 |
40 |
47.6 |
G1 1/2" |
| W90AG-63 |
63# |
18 |
54 |
85 |
92 |
80 |
52 |
59.4 |
G2" |
|
|
|
：
