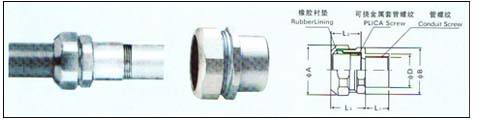

| 防水型混合连接器 |
| |
| |
①：橡胶衬垫 ②：可挠金属套管螺纹 ③：管螺纹 ④：L2 ⑤：ΦA ⑦：ΦD ⑧：B ⑨：L3 ⑩
：L1 |
|
| 防水型混合连接器规格表
| 型号 |
可挠金属套管规格 |
L1
mm |
L2
mm |
L3
mm |
ΦA
mm |
ΦB
mm |
Φd
mm |
管螺纹 |
接钢管规格 |
| WUG-17 |
|
17# |
19.0 |
24.5 |
27 |
37.0 |
34.0 |
25.3 |
G1/2" |
15 |
| WUG-24 |
24# |
22.0 |
25.5 |
30 |
46.0 |
42.8 |
31.3 |
G3/4" |
20 |
| WUG-30 |
30# |
25.0 |
29.0 |
33 |
54.0 |
50.5 |
38.4 |
G1" |
25 |
| WUG-38 |
38# |
28.0 |
33.0 |
37 |
64.0 |
60.0 |
47.2 |
G1 1/4 |
32 |
| WUG-50 |
50# |
28.0 |
34.5 |
38 |
78.0 |
73.5 |
53.5 |
G1 1/2" |
40 |
| WUG-63 |
63# |
34.0 |
37.0 |
44 |
92.0 |
90.0 |
66.0 |
G2" |
50 |
| WUG-76 |
76# |
36.0 |
42.0 |
48 |
108.0 |
104.0 |
81.0 |
G2 1/2" |
70 |
| WUG-83 |
83# |
40.0 |
42.0 |
49 |
121.7 |
115.8 |
95.8 |
G3" |
80 |
| WUG-101 |
101# |
32.0 |
52.0 |
57 |
145.0 |
150.0 |
110.4 |
G4" |
100 |
|
|
|
：
